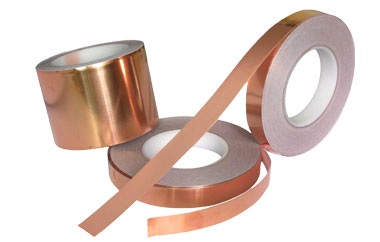

铜箔麦拉胶带

Copper polyester foil tape

[产品说明]: 铜箔胶带由铜箔、麦拉、传导压克力胶组成，其粘性好，附着力强。铜箔胶带分为单面覆胶和双面覆胶，单面覆胶的铜箔胶带又分为单导铜箔胶带和双导铜箔胶带，单导铜箔胶带即指覆胶面不导电，只有另外一面铜导电，故称单导即单面导电；双导铜箔胶带是指覆胶面导电，而且另一面铜本身也导电，故称双导即双面导电。

Product Description: Copper foil tape made up of copper foil, Mylar and conductive acrylic adhesive, sticky, strong adhesion. Copper foil tape consists of coated plastic and double side coating, coated copper foil tape is made up of single conductive foil tape and double conductive copper foil tape, single conductive copper foil tape refers to the coating non-conductive, only copper can conductive, it is called single conductive; double conductive copper foil tape refers to the coating conductive, and copper also conductive, it is called double conductive.

[应用方式]: 主要应用于电磁屏蔽，分电信号屏蔽和磁信号屏蔽两种，电信号屏蔽主要是依靠铜本身优异的导电性能，而磁屏蔽则需要铜箔胶带的胶面导电物质“镍”来达到磁屏蔽的作用，因而被广泛应用于手机，笔记电脑和其他数码产品之中。同时可用于接地，各类电子元器件的表面屏蔽。模切冲型后，可应用笔记本电脑、LCD显示器、复印机等需要电磁屏蔽的部位。

Application: Mainly used for electromagnetic shielding, two of them are signal shielding and magnetic shielding, signal shielding mainly depend upon excellent conductivity of copper, and magnetic shielding needs the conductive substance "nickel" of copper foil tape to achieve the effect of magnetic shielding, which is widely used in mobile phones, laptop and other digital products. It also can be used for grounding, the shielding of electronic components. After punching, can used in parts of needing electromagnetic shielding, such as laptop, LCD monitors and duplicator.

一、 主要技术指标：

Main specification:

二、颜色：铜色

Color: Copper

三、电气特性：具有保温，隔热，防水，粘力佳，耐寒性好，易撕，为消除电磁干扰(EMI)，隔离电磁波对人体的危害，避免不需要之电压或电流而影响功能。

Electrical characteristics: Heat preservation, thermal insulation, waterproof, excellent adhesive, cold-resistant, easy to tear, to remove elimination of electromagnetic interference (EMI)，isolate electromagnetic wave to harm human, avoiding undesired voltage and current to effect the function.

四、分切及包装：分切最小宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm;  the winding maximum outer diameter of 800mm, carton packaging.
