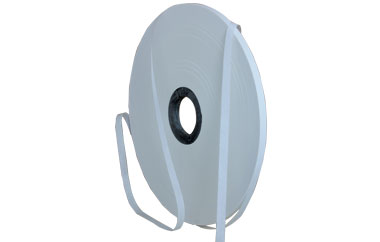

电缆棉纸带cottonpapertapeforcable
[产品说明]:又称电缆隔离纸，棉纸提供了纸浆长纤维的蓬松性与耐加工性，特别适用于电缆结构间隙绕包、隔离与填充。
productdescription:alsocalledcableisolationpaper,cottonpaperprovidesalongfluffyfiberandpulpprocessing,especiallyuseforwrapping,isolationandfillinginthega…
Cotton paper tape for cable
[产品说明]: 又称电缆隔离纸，棉纸提供了纸浆长纤维的蓬松性与耐加工性，特别适用于电缆结构间隙绕包、隔离与填充。
Product Description: Also called cable isolation paper, cotton paper provides a long fluffy fiber and pulp processing, especially use for wrapping, isolation and filling in the gap of cable.
[应用方式]: 主要用于通讯电缆、电力电缆、高频信号线、电源线、橡套电缆等的绕包，起隔离，填充，吸油的作用。
Application: Mainly use for wrapping in communication cables, power cables, high-frequency signal lines, power lines, rubber cable wrap, plays a role in isolation, filling, oil-absorbing.
一、主要技术指标：
Main specification:
|
产品规格 Specification |
断裂伸长率 Elongation Atbreak （%） |
抗张强度 Tensile strength （kgf/15mm） |
基重 Basis weight （g/m²） |
|
35±5μm |
2↑ |
3.4↑ |
33.24 |
|
40±5μm |
2↑ |
3.4↑ |
33.24 |
|
43±5μm |
2↑ |
3.2↑ |
35.24 |
|
45±5μm |
2↑ |
4↑ |
37.35 |
|
50±5μm |
2↑ |
4.5↑ |
39.26 |
|
60±5μm |
2↑ |
5↑ |
49.06 |
|
65±5μm |
2↑ |
5.5↑ |
52.36 |
|
80±5μm |
2↑ |
7↑ |
58.33 |
|
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers |
|||
二、颜色：白色
Color: White
三、电气特性：主要作为隔离，防止导体氧化发黑，同时可用于电缆结构间隙填充与包覆，与传统PP带，聚酯带等材料相比较，比重轻50%，手感好，韧性好，无毒环保等优点。经200℃高温测试，不熔，不脆，不粘护套外皮。
Electrical characteristics: Mainly used as an isolation to prevent conductor oxidation and blackening, can also be used for filling and coating, compared to traditional PP tape, polyester tape, the proportion light 50%, feel good, toughness, nontoxic and environmentally etc. test by 200 ℃ high temperature, won't melt, not crisp, non-stick outer sheath.
四、分切及包装：分切最小宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
