平纹无纺布plainnon-woventape
[产品说明]:平纹无纺布表面比较光滑,又称7031聚脂纤维电工无纺布,由聚酯纤维经浸渍粘合烘干成型。纤维经过充分梳理,纵向强度高。具有质量轻,厚度薄,拉伸强度大,绝缘性能好,低弹性,无腐蚀性等特点。
productdescription:plainnon-woventapehassmoothsurface,alsocalled7031polyes…

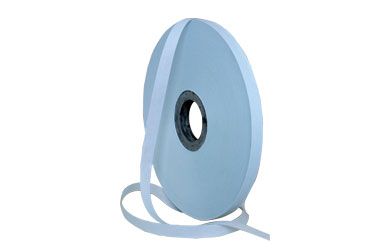

Plain non-woven tape
[产品说明]: 平纹无纺布表面比较光滑,又称7031聚脂纤维电工无纺布,由聚酯纤维经浸渍粘合烘干成型。纤维经过充分梳理,纵向强度高。具有质量轻,厚度薄,拉伸强度大,绝缘性能好,低弹性,无腐蚀性等特点。
Product Description: Plain non-woven tape has smooth surface, also called 7031 polyester electrical non-woven tape, made of polyester, and via filament impregnated adhesive drying process. Fiber combed fully, longitudinal strength. With light weight, thin thickness, tensile strength, good insulating properties, low elasticity, non-corrosive and so on.
[应用方式]: 适用于橡套电缆、电力电缆、特种电缆、通信电缆、同轴电缆、音频舞台电缆和光缆等。
Application: Used in rubber-sheathed cables, power cables, special cables, communication cables, coaxial cables, audio cables and optic cable.
一、主要技术指标:
Main specification:
产品规格 Specification |
伸长率 Elongation (%) |
抗张强度 Tensile strength (N/30mm) |
基重 Basis weight (g/m²) |
热收缩率 Heat shrinkage (%) |
吸水速度 Water absorption speed (mm/min) |
35±5μm |
10↑ |
24↑ |
17±3 |
2.5↓ |
0.1↓ |
80±5μm |
10↑ |
100↑ |
40±5 |
2.5↓ |
0.1↓ |
100±5μm |
10↑ |
120↑ |
70±5 |
2.5↓ |
0.1↓ |
150±5μm |
10↑ |
160↑ |
75±5 |
2.5↓ |
0.1↓ |
200±5μm |
10↑ |
200↑ |
75±5 |
2.5↓ |
0.1↓ |
除以上规格外,其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers |
二、颜色:白色或淡蓝色。
Color: White or light blue
三、电气特性:比重比压花无纺布轻40%左右,成本较低,且厚度较薄,柔软性好,耐温达280°C。
Electrical characteristics: Weight is lighter 40% than embossing non-woven tape, lower cost, thin thickness, good flexibility, heat resistance up to 280°C.
四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
