低烟无卤阻燃带lowsmokenon-halogenfireretardanttape
[产品说明]:由玻璃纤维布及低烟无卤阻燃材料加工制成。
productdescription:madeoffiberglassfabricandlow-smokehalogen-freeflameretardantmaterials.
[应用方式]:俗称玻纤布涂胶带，主要用于各类无烟、低烟、洁净的高阻燃电缆、耐火电缆等。
application:…

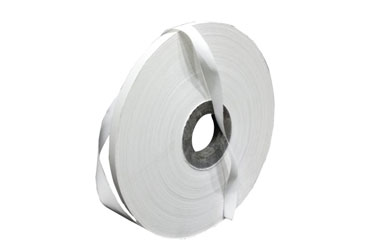

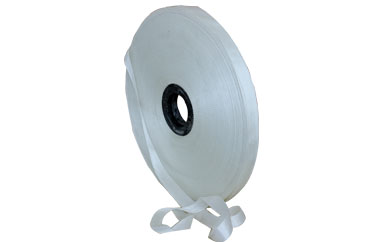

Low smoke non-halogen fire retardant tape
[产品说明]: 由玻璃纤维布及低烟无卤阻燃材料加工制成。
Product Description: Made of fiberglass fabric and low-smoke halogen-free flame retardant materials.
[应用方式]: 俗称玻纤布涂胶带，主要用于各类无烟、低烟、洁净的高阻燃电缆、耐火电缆等。
Application: Commonly known as glass fiber fabric coated tape, mainly used for all kinds of high flame retardant cables and fire-resistant cable, with smoke-free, low smoke and cleaning.
一、主要技术指标：
Main specification:
|
产品规格Specification (μm) |
150±20 |
200±20 |
250±20 |
|
|
单重Unit weight（g/m²） |
180±25 |
180±25 |
220±25 |
|
|
拉伸强度Tensile strength (N/25mm) |
200↑ |
300↑ |
400↑ |
|
|
氧指数Oxygen index (%) |
55↑ |
55↑ |
55↑ |
|
|
烟密度Smoke Density Dm(NF值) |
150↓ |
150↓ |
150↓ |
|
|
燃烧时放出的腐蚀性气体 Corrosive gases in burning |
水溶液的PH值 PH value of aqueous |
4.3↑ |
4.3↑ |
4.3↑ |
|
导电率Conductive(μs/mm) |
4.0↓ |
4.0↓ |
4.0↓ |
|
二、颜色：白色。
Color: White
三、电气特性：比重比压花无纺布轻40%左右，成本较低，且厚度较薄，柔软性好，耐温达280°C。
Electrical characteristics: Weight is lighter 40% than embossing non-woven tape, lower cost, thin thickness, good flexibility, heat resistance up to 280°C.
四、分切及包装：分切最小宽度为15mm以上，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 15mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
