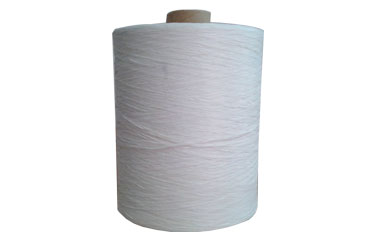

聚丙烯网状填充绳(pp网状填充)ppyarnfiller
[产品说明]:又叫充麻，以聚丙烯为基料，经过专用机器开网加工制成高强力网状填充材料，可根据客户需求加捻，或者加入环保阻燃剂制成阻燃型填充绳。
productdescription:alsoknownashemp-filledyarn,baseonpolypropylene,madefromhightenacitynetfillingmaterialsthroughspec…
PP yarn filler
[产品说明]: 又叫充麻，以聚丙烯为基料，经过专用机器开网加工制成高强力网状填充材料，可根据客户需求加捻，或者加入环保阻燃剂制成阻燃型填充绳。
Product Description: Also known as hemp-filled yarn, base on polypropylene, made from high tenacity net filling materials through special machines, twisting according to customer's requirement, or add environmentally friendly flame retardant agent.
[应用方式]: 普遍使用于复合型通信电缆、钢丝绞绳，电力电缆及特种阻燃耐炎电缆的轻质结构填充。
Application: Commonly used for filling in complex communication cables, steel wire rope, power cables and special fire-retardant cable.
一、主要技术指标：
Main specification:
|
产品规格 Specification |
每公斤长度 Length/KG (M/KG) |
伸长率 Elongation (%) |
拉断力 Pulling strength (N) |
热收缩率 Heat shrinkage (%) |
捻后直径 Twisted diameter (mm) |
|
2000D |
4500 |
15↓ |
30↑ |
2.5↓ |
0.4 |
|
4000D |
2400 |
15↓ |
50↑ |
2.5↓ |
0.5 |
|
5000D |
1800 |
15↓ |
55↑ |
2.5↓ |
0.6 |
|
8000D |
1125 |
15↓ |
80↑ |
2.5↓ |
1.0 |
|
10000D |
935 |
15↓ |
90↑ |
2.5↓ |
1.2 |
|
12000D |
750 |
15↓ |
100↑ |
2.5↓ |
1.5 |
|
15000D |
600 |
15↓ |
150↑ |
2.5↓ |
1.8 |
|
20000D |
450 |
15↓ |
200↑ |
2.5↓ |
2.2 |
|
30000D |
300 |
15↓ |
300↑ |
2.5↓ |
2.6 |
|
注：除以上规格外，可以根据客户特殊要求订做。 In addition to the above specifications, other special requirements can design according to customers |
|||||
二、颜色：常规颜色为白色和透明两种颜色，阻燃充麻为淡蓝色。
Color: Common color is white and transparent, flame resistant hemp-filled yarn is light blue.
三、特点：柔软性极佳,重量轻、非吸湿性材料、强度不受水份影响、抗拉强度高、抗酸碱及抗霉性佳、高频绝缘性能好、耐电压、无毒环保。
Electrical characteristics: Excellent flexibility, light weight, non-absorbent material, the intensity is not affected by moisture, high tensile strength, good anti-acid and alkaline, high insulation properties and good resistance to voltage, drug-free and environmental.
四、包装方式：编织袋或纸箱包装。
Packaging: Woven bag or carton packaging
